Martin JEM Glaciator Dymic, Ducting Kit
Overview
Smaller, quieter, and capable of taking low-fog to more locations—the live event industry’s leading low-fog machine returns with its most significant upgrade in over a decade. Martin JEM Glaciator Dynamic is your complete solution for creating dense, billowy clouds of low-lying fog in any venue without the use of industrial gases or ice. Achieve lush fog on stage with longer-lasting effects. Reduce noise with near-silent operation, perfect for theatrical applications. Enjoy more room backstage with an all-new, more compact design. And tour the world with an updated universal power supply. With a full range of premium accessories, three low-fog fluid types to choose from, and streamlined user controls, you can create dramatic atmospheric effects for your production in moments. Just plug in, set the stage, and amaze.
  • Completely self-contained low-fog system—no industrial gases or ice
  • Closed-loop refrigeration for colder, dense, longer-lasting low-fog
  • Ultra-quiet operation, including low ambient noise in standby
Features
  • All-in-one, self-contained solution without the need for external fans, industrial gas tanks, or ice
  • All-new Electronic Inverter Drive for improved effects and lower ambient noise
  • Fill your stage with low-fog thanks to continuous 80 m³ (2825 ft³) per-minute output
  • Even smaller, compact service-friendly design: 785 x 648 x 769 mm (30.9 x 25.5 x 30.2 in.)
  • World touring capabilities via a universal power supply that operates at 208-250 V, 50/60 Hz
  • Onboard industry standard DMX connectivity (both 3- and 5- pin) for control and integration
  • Intuitive user interface with Fast Access Keypad for fast, easy manipulation of low-fog output
  • 180° Low-fog outlet engineered for a smooth, consistent low-fog field
  • Achieve diverse effects with three premium fluid options
  • Simple, one-touch fluid priming
  • 5 l internal fluid reservoir provides an hour of continual consistent low-fog output
  • (Optional Accessory) JEM Glaciator Dynamic Ducting Kit for 3-way low-fog diversion
  • (Optional Accessory) JEM Glaciator Dynamic Fog Blade for creative output points and waterfall-like low-fog effects
  • (Optional Accessory) JEM External Fluid Reservoir—25 l low-fog fluid reservoir for hours of uninterrupted use
  • (Optional Accessory) Softcover—custom made of reinforced ballistic nylon protects the machine in transit

Martin JEM Glaciator Dymic, Ducting Kit

$550.70Price

  • Physical

    • Length: 785 mm (30.91 in.)
    • Width: 648 mm (25.52 in.)
    • Height: 769 mm (30.29 in.)
    • Height without castors: 636 mm (25.06 in.)
    • Weight, dry: 124 kg (274 lb.)
    • Weight, filled: 129 kg (285 lb.)

    Performance

    • Coverage volume: 80 m3 (2825 ft3) minute
    • Fluid consumption, continuous maximum output: 70 ml minute
    • Ready time (minimum): 5-minutes
    • Ready time (optimal): 7-minutes
    • Continuous effect output

    Control and Programming

    • Control options: Integrated digital remote control, fast access keypad, DMX/RDM, master/slave Control parameters: Continuous or timer-controlled output
    • Low-Fog/Fan: Proportionally controlled output, 0-100% Setting and addressing: Control panel with backlit LCD display and 6-button user interface or via RDM
    • DMX channels: 1/2
    • DMX compliance: ANSI E1.11 - USITT DMX512-A
    • RDM compliance: ANSI/ESTA E1.20 RDM

    Construction

    • Housing: Steel
    • Color: Black
    • Portability: Removable castors
    • Protection rating: IP20
    • Heat exchanger: 2500 W, thermally protected
    • Fluid pump, low-fog fluid: Oscillating piston, high-pressure
    • Fluid pump, waste condensate: Peristaltic pump, low-pressure
    • Fluid management, low-fog fluid: Fluid out sensing, sealed for transportation
    • Fluid management, waste condensate: Visual sight gauge, LED illuminated reservoir
    • Fluid reservoir, low-fog fluid: 5 l drop-in reservoir w/ quick connect fitting or external source
    • Fluid reservoir, waste condensate: 0.5 l drop in reservoir w/ quick connect fitting or external source
    • Refrigeration: Closed loop system, variable speed condenser fans, electronic expansion valve Refrigeration control: PWM electronic control
    • Remote Control: Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR Remote Control Cable Length (max.): 25 m (82 ft.)
    • Optional Ducting Kit: Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.) OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw
    • Optional Fog Blade: Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw Optional External Fluid Kit: 25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting
    • Optional Softcover: Black, heavy duty PVC external, brushed nylon padding interior, hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket

    Installation

    • Location: Dry location only
    • Orientation: Horizontal Only Clearance around machine: 60 cm (24 in.)
    • Ducting: Optional, max length 10 m (32.8 ft.)

    Connections

    • AC Power: Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.)
    • DMX/RDM in/out: 3- and 5-pin locking XLR
    • Remote control: 3-pin locking XLR
    • Firmware: AVR socket
    • Fluid inlet, low-fog fluid: Brass barbed hose tail, 6 mm
    • Fluid outlet, waste: Brass barbed hose tail, 6 mm

    Electrical

    • AC power: 208 - 250 V single phase, 50/60 Hz
    • Typical power consumption, standby: 10 W
    • Typical power consumption, maximum: 3500 W
    • Power supply unit: Auto-ranging electronic switch-mode
    • Integrated resettable circuit breaker: 25 A, 240 V max., 50/60 Hz
    • Half-cycle RMS inrush current at 230 V, 50 Hz: 20 A

    Typical Power and Current

    • 208 V, 60 Hz: 3350 W, 17.8 A, PF 0.96*
    • 220 V, 50 Hz: 3350 W, 16.9 A, PF 0.96*
    • 230 V, 50 Hz: 3350 W, 15.6 A, PF 0.96*
    • 240 V, 50 Hz: 3350 W, 15.2 A, PF 0.96*

    *Figures are typical, not maximum. Measurements made at nominal voltage, allow for a deviation of +/- 10%. PF = Power Factor.

    Thermal

    • Cooling: Forced air, low noise
    • Maximum ambient temperature (Ta max.): 35° C (95° F)
    • Minimum ambient temperature (Ta min.): 5° C (41° F)
    • Exterior surface temperature, steady state: 30° C (86° F)
    • Total heat dissipation, idle (calculated, +/- 10%): 2241 BTU/hr.
    • Total heat dissipation, full load (calculated, +/- 10%): 11430 BTU/hr.

    Acoustic

    • Noise level average, maximum low-fog output: 62.76 dBa
    • Noise level average, standby: 40.47 dBa

    Approvals

    • EU safety: EN 60335-1+A11
    • EU EMC: EN 61000-6-1, EN 62233
    • EU immunity: EN 61000-6-1+A1

    Included Items

    • Fluid reservoir, 5 l: P/N 34300506
    • Fluid reservoir 0.5 l: P/N 34300515
    • JEM Glaciator Digital Remote Control: P/N 92765050

    Accessories

    • JEM Glaciator Dynamic, Ducting Kit: P/N 92625020
    • JEM Glaciator Dynamic, Fog Blade: P/N 92625025 JEM Glaciator Dynamic, Softcover: P/N 92625030 JEM External Fluid Reservoir Kit, 25 l: P/N 92620035

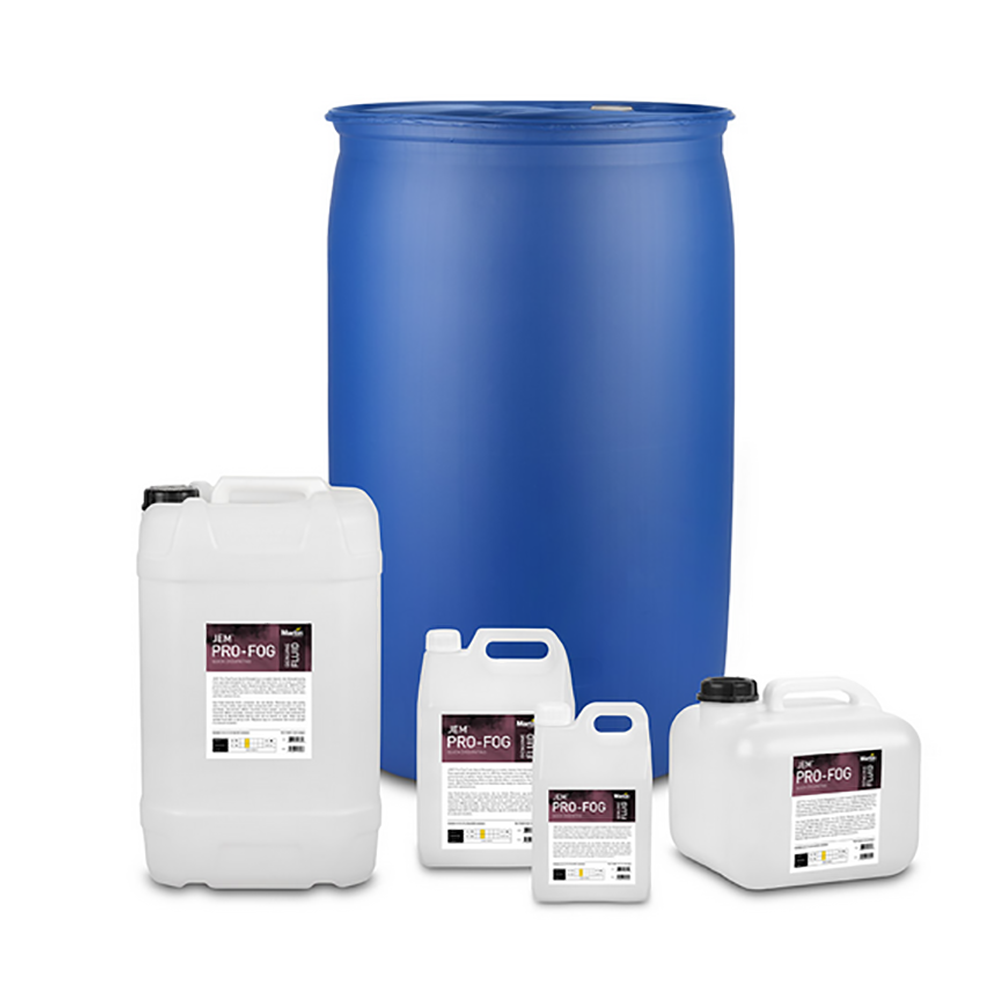

    Approved fluids*:

    • JEM™ Low-Fog Fluid, Quick Dissipating
    • JEM™ Low-Fog Fluid
    • JEM™ Low-Fog Fluid, High Density
    • Martin® Pro-Clean and Storage Fluid
