Overview
The ES-218 is a bass-reflex subwoofer system that makes use of two newly developed 18UXN transducers. The loudspeakers incorporate state-of-the-art features such as a 4′′ sandwich split winding voice coil, a remarkable 52 mm peak-to-peak excursion, and a powerful FEA (Finite Element Analysis) optimized neodymi-um magnet assembly. Thanks to the double silicon spider, the 18UXN controls the moving mass with high linearity. An aluminum demod-ulating ring benefits lower distortion and the effective ventilation of the voice coil gap provides for a high thermal rating, and reduced power compression. The ES-218 subwoofer system has program power handling capacity of 4400 Wprogram and is capable of producing a maximum peak SPL of 143 dB.
The cabinet are designed using top grade birch plywood and protected with an impact resistant ISO-flex paint. The f ront elements of the cabinet are protected using a solid metal grill assisted by an acoustically transparent fabric.
Features
- High performance subwoofer system
- Two new 18UXN long excursion loudspeakers
- Front loaded crossfire configuration
- Solid Birch plywood construction
Applications
- Nightclubs
- Bar & Lounges
- Live Music Venues

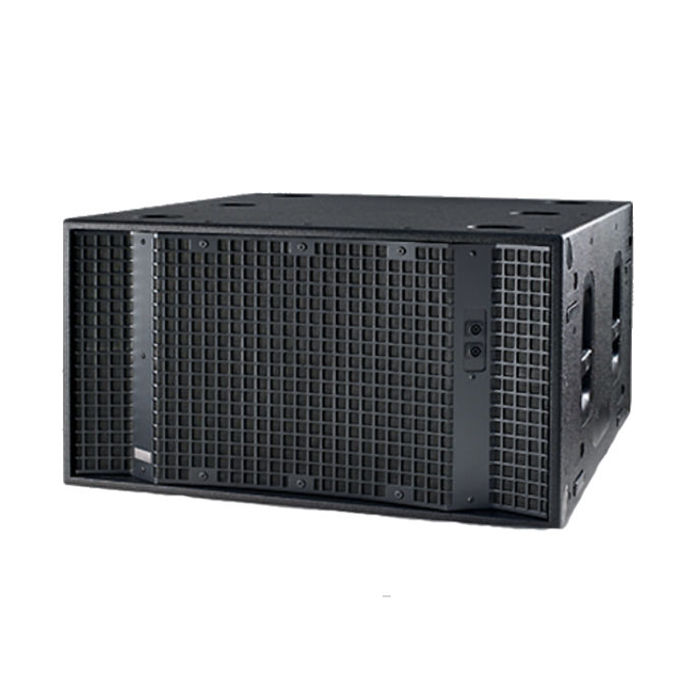

DAS Audio Passive 2200W (RMS) 2 x 18" Ground-stackable Crossfire Subwoofer black
Performance
- Frequency Range (-10 dB): 28 Hz – 125 Hz
- Nominal Impedance: 4 ohms
- RMS Power HandlingPeak: 2200 W
- Power HandlingOn-axis: 8800 W
- Sensitivity 1W/1 m: 103 dB SPL
- Maximum Peak SPL at 1m: 143 dB
Enclosure- Enclosure Construction: Birch Plywood
- Enclosure Geometry: Trapezoidal
- Rigging: M10 Rigging Points
- Finish: ISO-flex Paint
- Color: Black
- Net Weight: 87 kg (191,8 lb)
Dimensions:- 515 x 955 x 1005 mm
- 20,3 x 37,6 x 39,6 in
