Overview
The JEM ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its powerful 1500 W heat exchanger, the JEM ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.The rugged yet weight optimized JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with and integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.
- High endurance mid-sized fog machine
- Exceptional performance and output
- Various control options via digital remote, DMX and RDM
Features
- Robust roadworthy design

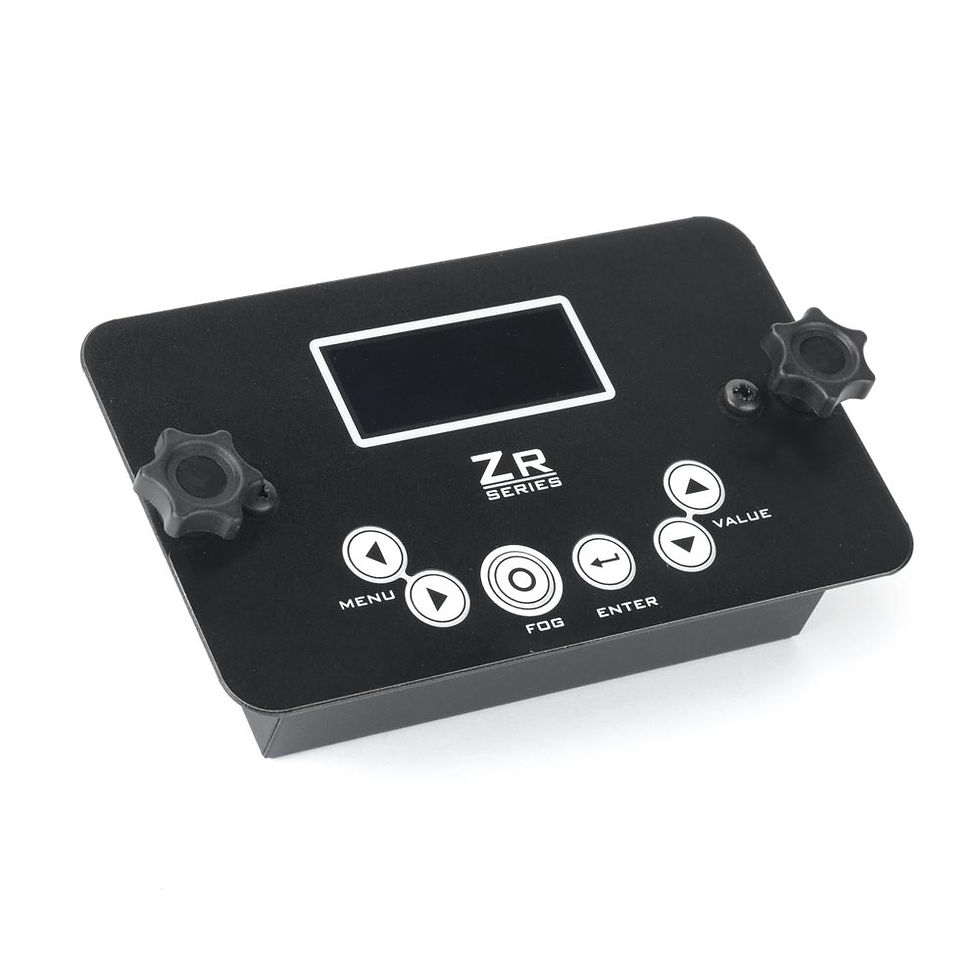

- Integrated Digital Remote Control
- DMX with RDM
- Floor standing or truss mounting (hanging bracket included)
- 1500 W heat exchanger
- 800 m³ (28,252 ft.³) per minute fog output
- Variable output control for subtle effects
- Continuous effect output
- Compatible with a wide range of JEM Pro-Fog fluids
- 4 l Fluid reservoir with quick-connect fitting (compatible with 5 l bottle)
- Easy external fluid connection
- Optional Ducting Kit

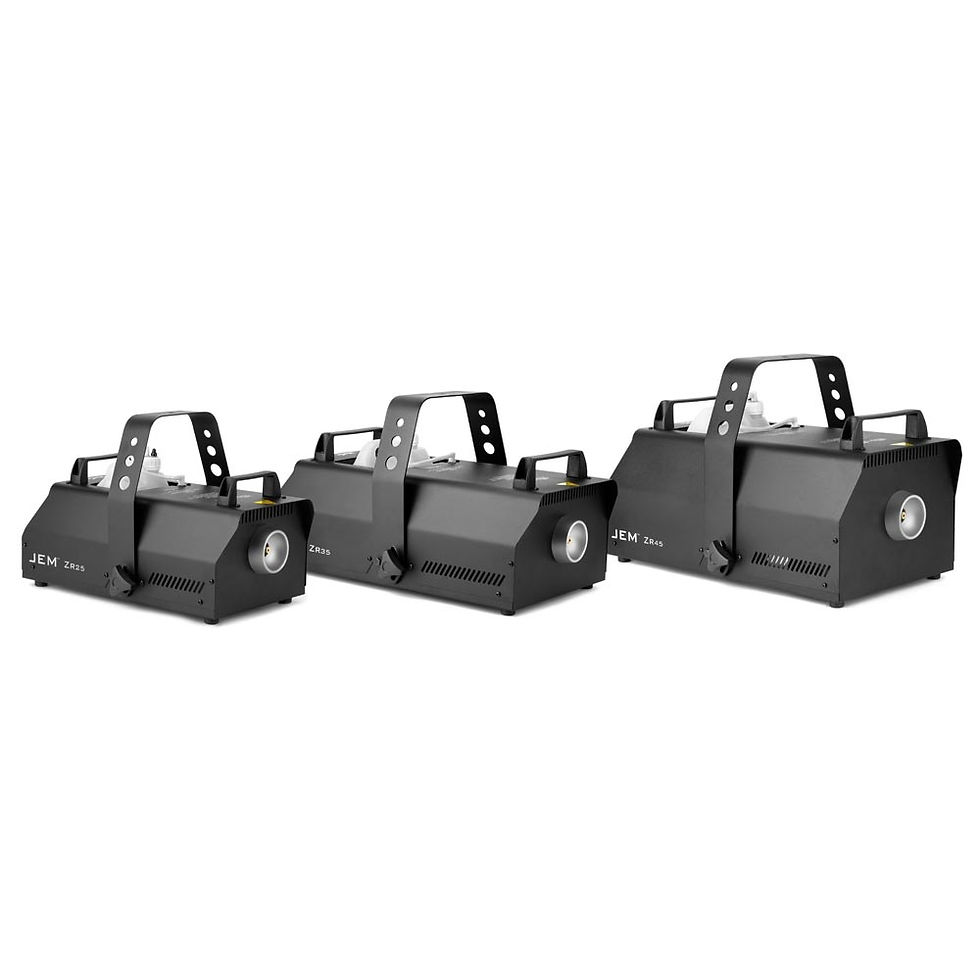

Martin JEM ZR35 120V/50-60Hz, US
$1,455.82Precio
- Physical
- Length: 590 mm (23.3 in.)
- Width: 395 mm (15.6 in.)
- Height: 264 mm (10.4 in.)
- Height with hanging bracket: 333 mm (13.9 in.)
- Weight, dry: 15.1 kg (33.3 lbs.)
- Weight, filled: 19.1 kg (42.1 lbs.)
- Performance
- Coverage volume: 800 m3 (28,252 ft3) per minute
- Fluid consumption (max.): 140 ml per minute
- Maximum operating time, maximum output, 4 l of fluid: 1.25 hours
- Ready time: 9-minutes
- Continuous effect output
- Control and Programming
- Control options: Integrated digital remote control, DMX, master/slave link mode
- Control parameters: Continuous or timer-controlled output
- Fog: Variable output control, 0-100%
- DMX channels: 1
- External fluid control: Fluid sensing
- DMX compliance: ANSI E1.11 - USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20 RDM
- Construction
- Housing: Steel and aluminum
- Color: Black
- Heat exchanger: 1500 W, thermally protected
- Fluid pump: Oscillating piston, high pressure
- Fluid management: Fluid out sensing, sealed for transportation
- Fluid reservoir: 4 or 5 l drop-in reservoir with quick-connect fitting
- Remote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR
- External Fluid Control: Fluid sensing
- Hanging bracket: Integrated yoke with safety attachment point
- Installation
- Mounting: Standing or hanging
- Orientation: Up to +/-40° from horizontal
- Clearance around machine: 100 mm (4 in.)
- Connections
- AC Power: Neutrik PowerCON TRUE1
- DMX, link mode in/out: 5-pin locking XLR
- Remote control: 3-pin locking XLR
- Firmware: AVR socket
- Electrical
- EU Model:
- AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 10 AT (slow blow), 250 V
Typical power and current: 1500 W, 6.8 A* - US Model:
- AC power: 100-130 V nominal, 50/60 Hz
Main fuse: 15 AT (slow blow), 125 V
Typical power and current: 1450 W, 12.1 A* - *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
- Thermal
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Exterior surface temperature, steady state: 30° C (86° F)
- Maximum nozzle temperature: 290° C (554° F)
- Approvals
- EU safety: EN 60 335-1+A15, EN62233
- EU EMC: EN 61000-6-3
- EU immunity: EN 61000-6-1
- US safety: UL 998
- Canadian safety: CSA C.22.2 No. 104.01
- Australia/NZ: RCM (pending)
- Included Items
- Fluid reservoir, 4 l: P/N 34300523
- JEM ZR Series Integrated Digital Remote Control: P/N 92765048
- Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
- Power input cable, US, 15A, PowerCON TRUE 1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501045
